SLATE DRY
VERGE SYSTEM


Code

Description

Unit

Per Pack

C01

Standard Slate Trim (1) Aluminium

3m

20

C01N

Standard Slate Trim (1) for Natural Slate Aluminium

3m

20

C01P

Standard Slate Trim (1) PVC

3m

20

C02

Standard Slate Trim (2) Aluminium

3m

8

C02N

Standard Slate Trim (2) for Natural Slate Aluminium

3m

8

C02P

Standard Slate Trim (2) PVC

3m

8

C03

Existing Roof Slate Trim Aluminium

3m

20

C03N

Existing Roof Slate Trim for Natural Slate Aluminium

3m

20

C03P

Existing Roof Trim PVCu

3m

10

C07

Slate Roof Valley Trim Aluminium

3m

10

C07N

Slate Roof Valley Trim for Natural Slate Aluminium

3m

10

C07P

Slate Roof Valley Trim PVC

3m

10

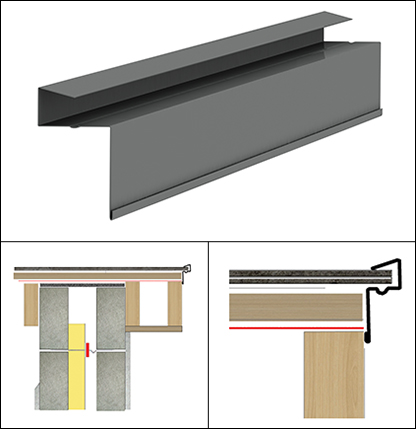

EXISTING ROOF SLATE TRIM



This trim is ideal for roofs to which slates have already been fixed, to prevent slates from wind uplift.



It is installed by placing the trim over the edge of the slates and face fixing into the barge boards.



Ideal when fitting new PVC fascia. Available in two sizes in aluminium and also PVCu.



C03 (Aluminium) capacity up to 18mm.

C03N (Aluminium) capacity up to 25mm.

C03P (Aluminium) capacity up to 25mm.



>> CONTEXT VIEWS






Slate Trim Product Codes

Capacity up to 18mm.
Product Codes Suffixed with 'N' have a 25mm capacity.
Larger capacities are available to order in aluminium.

The C03P has a flexible capacity of 15mm - 25mm.
